非接触式柔性多段位电容液位传感器ZCT-YOF07-M006
品牌：ZISEN
规格型号：ZCT-YOF07-M006
性能简述：非接触式柔性多段位电容液位传感器ZCT-YOF07-M006
咨询热线：
15818598199
详细介绍

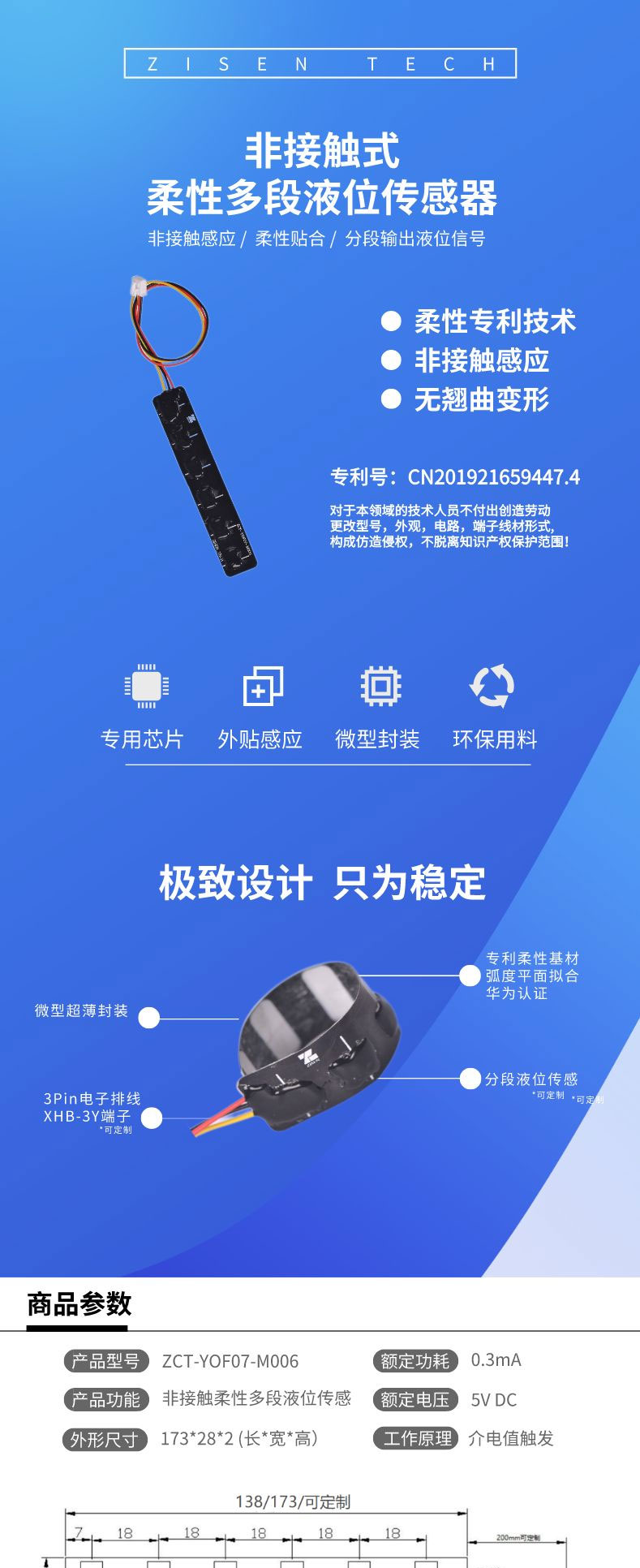

非接触式柔性多段位电容液位传感器ZCT-YOF07-M006
一、简介 Introduction
一种无接触式柔性多段感应电容液位传感器，采用非接触方式检测
液体。严格区别于浮子式开关、霍尔开关、金属探头等传统产品。
相比传统液位产品，本品体积超小，不占空间，无需安装固定孔，
无需长期浸泡液体中，不会造成水垢污染，不存在清洗难等困扰。
不会像干簧管或者霍尔器件一样受电磁场干扰等。是一款更加美观，
使用便捷，能满足消费升级需要，符合时代进步、科技发展需求，
满足小型化的市场需求，同时符合电气化、信息化，数字化发展大
趋势的优质传感器。
A non-contact flexible multi-segment inductive capacitive liquid level sensor designed to solve the traditional
Float switch, Hall switch, metal probe, use contact method to detect liquid.
Traditional liquid level products are large in size and require fixing holes to be installed and long-term immersion in
liquid.It will cause scale pollution, difficult to clean, easy to get stuck, yellow and sticky.
Reed technology only stays at the switching signal, and there is electromagnetic field interference like Hall.
Therefore, consumers need a product that makes the product more beautiful and cleaner to use.
Sensing products that meet the needs of current consumption upgrades and are developing towards
electrification and digitalization.
二、产品特点 Features
1）采用无接触方式感应液体，传感器外置于容器外壁，不接触液体；
The liquid is sensed in non-contact mode, and the sensor is placed on the outer wall of the container
without touching the liquid;
2）采用柔性基材，弯曲特性，轻薄特性，材料优于传统 FR-4
Using flexible substrate, bending characteristics, light and thin characteristics, the material is better than traditional FR-4
3）坚持小型化，稳定优先，芯片功耗降低 2/3，性能突出，元器件精度 0.05%；
Adhere to miniaturization, stability is the priority, the power consumption of the chip is reduced by 2/3,
performance is outstanding, and the component accuracy is 0.05%;
4）自带耐温防水 3M 背胶，永久固定，无需开孔固定，整体防水封装；
Comes with temperature-resistant and waterproof 3M adhesive, permanent fixation, no need to open holes for fixation,
integrated sealing of components;
5）根据需求定制每段液位间距，快速打样，无需模具；
Customize the liquid level spacing of each segment according to the needs, fast proofing, no mold required

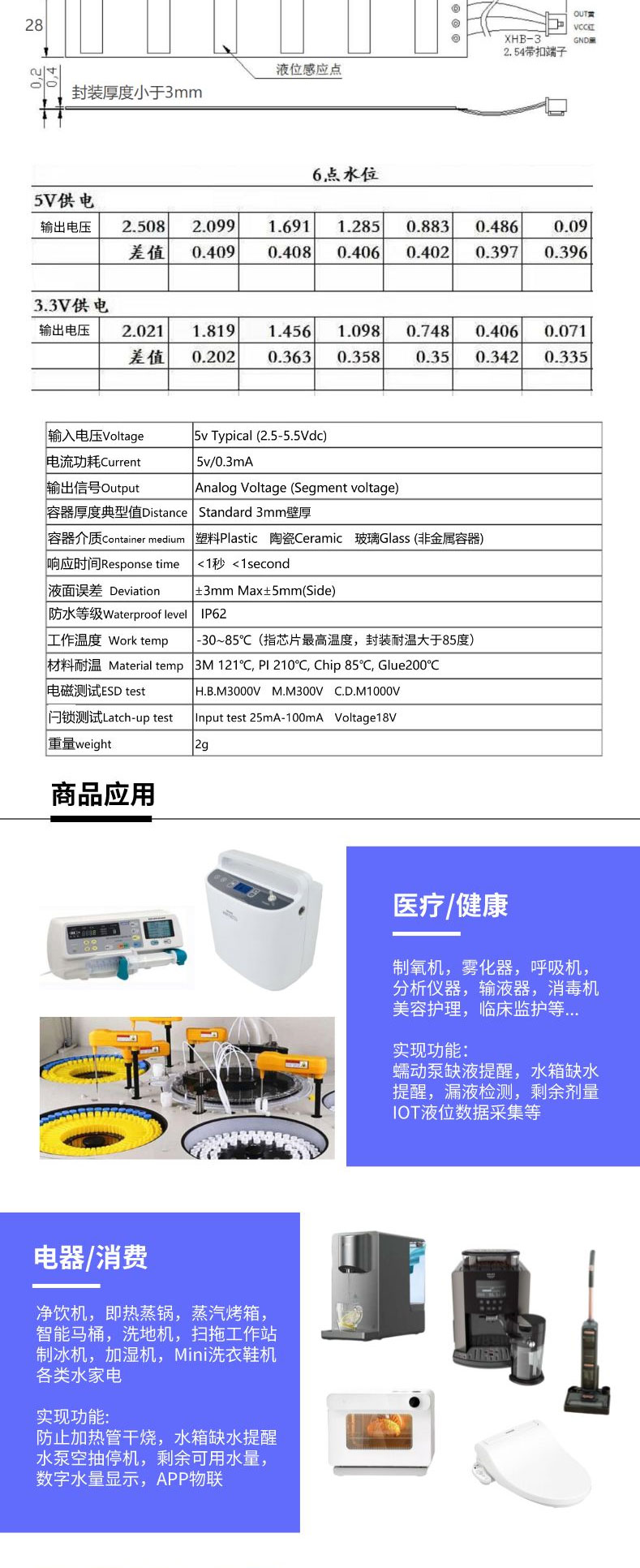

三、功能与检测范围 Function and detection range
1） 多段液位采集；
Multi-stage liquid level acquisition;
2） 数字化液位显示;
Digital liquid level display，Display water quantity in APP
3） 适合蒸馏水，矿泉水，纯净水，酒，汽油，奶，试剂，药剂，墨水，化工，酒精等液体；
适合非金属容器；
Suitable for distilled water, mineral water, pure water, wine, oil, milk, reagents, ink, alcohol, etc.;
Suitable for liquids with dielectric constant values greater than plastic shells, ceramic shells, glass shells,
Suitable for non-metallic containers

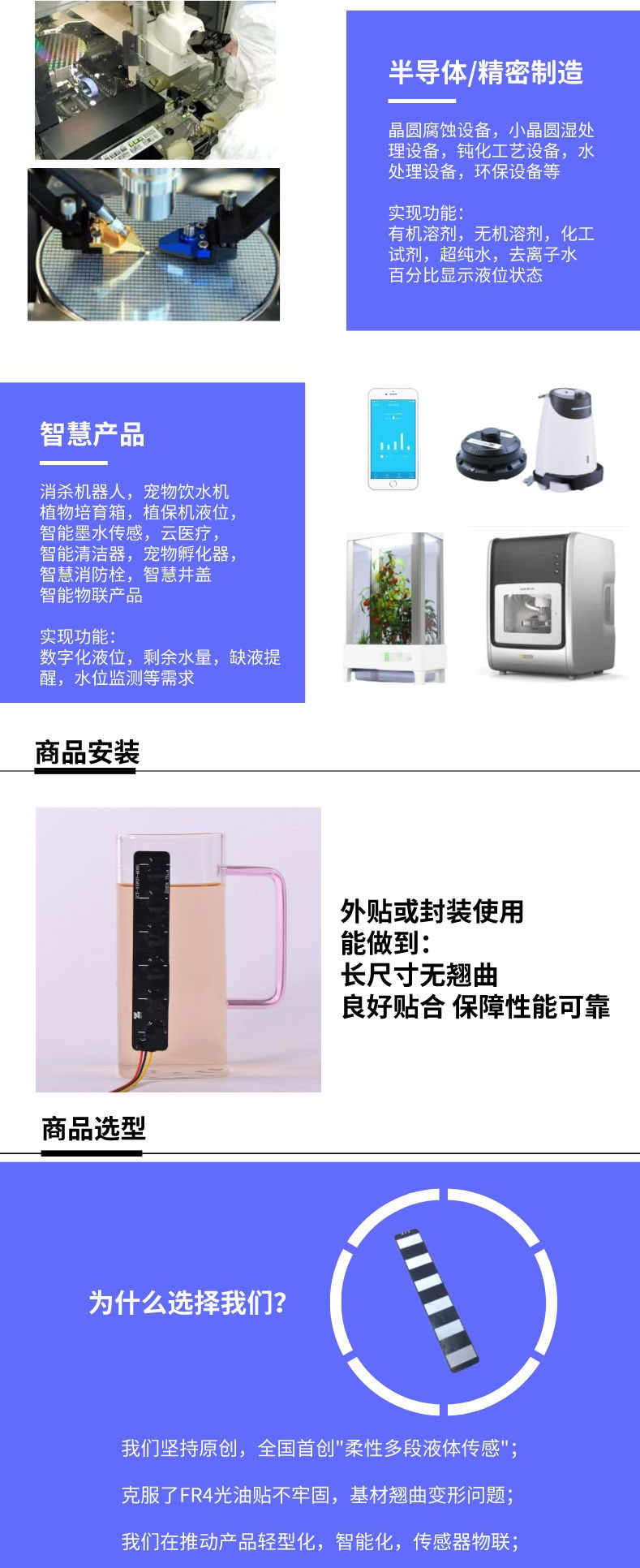

四、应用领域 Application field
轻量化，便携化，曲面外观，量化，数字化，智能产品；
Lightweight, portable, curved appearance of products, quantitative, digital, intelligent products
